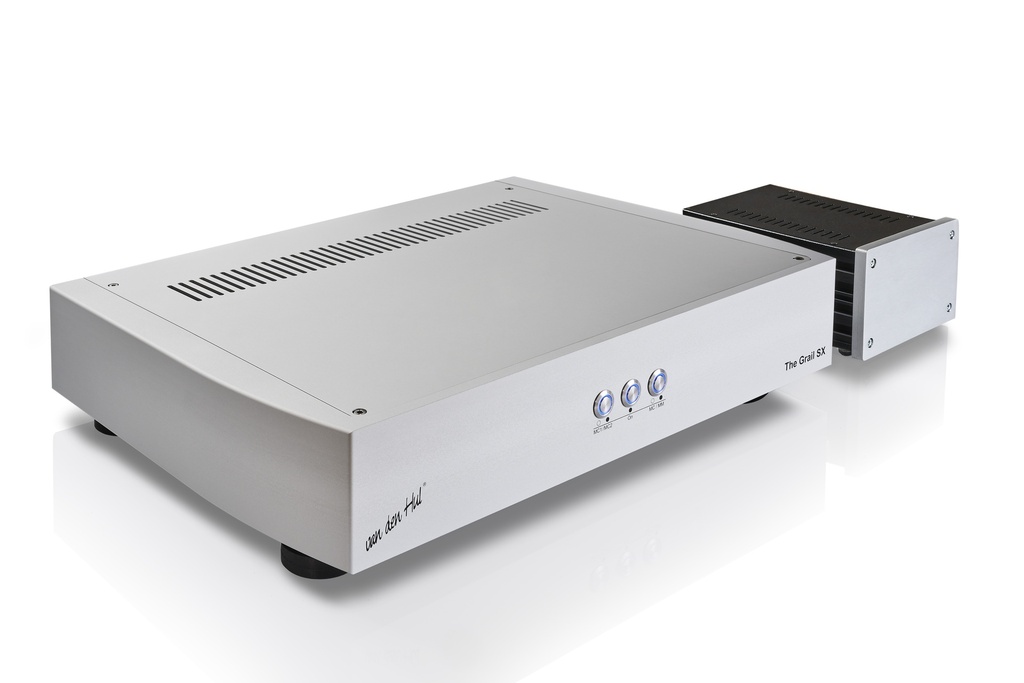

Van den Hul The Grail SX Phono pre-amp
Van den Hul The Grail SX Phono pre-ampBalanced phono preamplifier. With this product you are the owner of one of the most innovative and advanced phono preamplifiers currently available. We are proud to present the latest addition to our range, the Grail SX. It is the successor to the Grail SE and our new flagship phono amplifier.
| Color: Black/Wood |
| Brand: Van den Hul |
| Quality class product: High-end |
| Phono support MM: Yes |
| Phono support MC: Yes |
Description
| Over five decades ago, we invented our phono cartridge stylus, the van den Hul 1S. During these decades, we also produced phono cartridges, which are regarded as some of the best in their class and renowned worldwide. However, as a leading manufacturer of phono cartridges, it was only natural for us to create our own phono preamplifier. This led to the launch of the original Grail in 2009. Over the years, we introduced the Grail SB (featuring balanced inputs and outputs) and the SE (including a dual mono board and balanced connectivity). | Features: - The highest signal to noise ratio ever With the newset Grail SX, you can achieve over 80dB(A) with the lowest amplification factor - Developed by op class-leading phono cartridge manufacturer Thanks to more then four decades of experience of building phono cartridges, we knew what was necessary to improve a top-noth phono preamplifier. - A new and redeveloped circuit board Thanks to the new circuit, board, the overall sound quality improved. The Grail SX made a big improvement, especially in the soundstage and the airiness. - Automatic loading impedance Like the predecessor, the Grail SX also has an automatic load impedance for the cartridges, starting from 10 Ohm to 400 Ohm. |
Specifications
Ingang:
Twee MC-ingangen
MC-1 (gebalanceerd of ongebalanceerd)
MC-2 (alleen ongebalanceerd)
Eén MM-ingang (of MC-element met hoge uitgangsspanning)
MM-1 (alleen- - ongebalanceerd)
MM-ingang - Versterkingsfactor
32 dB 6,2 mV
40 dB 2,5 mV
46,5 dB 1,2 mV
Ingangsimpedantie: 47 kOhm / 50 pF
MC-ingang - Versterkingsfactor
52 dB 0,62 mV
60 dB 0,25 mV
66,5 dB 0,12 mV
Ingangsimpedantie van 10 Ohm tot 400 Ohm
Max. onvervormde uitgangsspanning (<1%) - 15 Vss voor MM-signaalpad, 8,5 Vss voor MC-signaalpad
Uitgangsimpedantie - 330 Ohm (echte weerstand), 600 Ohm bij gebalanceerde uitgang
Ingangsgevoeligheids waarden (gegeven voor 250 mV RMS resp. 0,707 Vss uitgangsniveau op de versterkeruitgang)
Signaal-ruisverhouding - Meer dan 80 dB(A) met de laagste
Ingangsimpedantie - Automatische aanpassing in milliseconden van ca. 10 Ohm tot 400 Ohm
Temperatuurbereik - van 15 °C tot 35 °C kamertemperatuur. Condensatie op het apparaat is niet toegestaan. Alleen gebruiken in droge ruimtes.
Afmetingen (B x H x L, incl. voet) - 475 x 95 x 335 mm
Gewicht - 13,5 kg (ca. 30 lbs) zonder de externe voeding
Netvoeding - Verkrijgbaar met 115/120 volt of 230 volt, 50/60 Hz.
Beschikbare kleur Mat zilver aluminium
