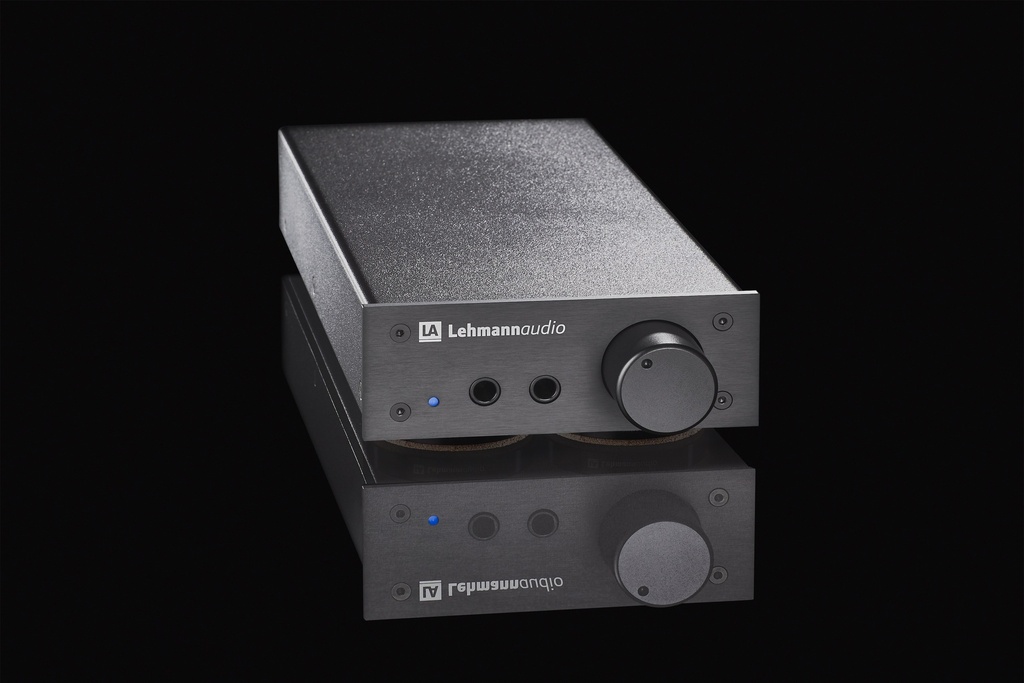

LehmannAudio Linear II headphone amplifier
LehmannAudio Linear II headphone amplifierEverything which has made the Linear headphone amplifier a legend already since 2004, has now become even better: the Linear II lifts the qualities of our reference model to a new standard.
| Brand: LehmannAudio |
| Quality class product: Premium |
Description
Experience detailed lucidity when playing your music, effortless lightness even with high signal levels and the low-artefact reproduction of complex music pieces. The Linear II redefines vividness in the reproduction completely. That way you can enjoy even the longest listening sessions without fatigue and with greatest pleasure. | Powerful, spirited, sovereignIn connection with the elaborately designed pc board in Low-Z copper technology the powerful class-A output stage plays even more dynamically and takes you a big step closer to the music. Mundorf capacitors in the power supply and in the signal path deliver an impressive room imaging and transient response. 3S device feet ensure maximum mechanical quietness for the Linear II. Not only while enjoying music with one or two headphones, but also when connected to active speakers or a power amplifier, the Linear II delivers its ultimate performance. Allow yourself to be surprised by a punchy, authentic sound which is unique for a device of this size! |
Specifications
| Input impedance | 47 kohms |
| Maximum gain | 0 dB, 10 dB, 18 dB, 20 dB selectable via DIP switches |
| Frequency response | 10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
| Signal to noise ratio | > 100 dB at Gain 0 dB |
| THD | < 0,001 % at 6 mW/300 ohms |
| Channel separation | > 70 dB at 10 kHz |
| Output power | 400 mW/60 ohms 200 mW/300 ohms |
| Output impedance | pre-out 60 ohms phones out 5 ohms |
| Connectors audio | Neutrik headphone jacks with gold plated contacts 1 x pre-out 2 x phones out gold plated RCA sockets with teflon insulation |
| Power consumption | 10 W |
| Outer dimensions W x D x H | 110 mm x 280 mm x 50 mm |
| Weight | 1.5 kg netto |
